ptfe film

ptfe film
ptfe filmptfe filmptfe filmptfe filmptfe film
Categoriesptfe film
AlbumView larger image
BrandTICOPTFE
ModelSF-1
Colorwhite
Material100% PTFE
Place of OriginShaanxi, China (Mainland)
FOB portshenzhen, shanghai, tianjin
Terms of PaymentT/T, Western Union
Download DOC
Update Time2019-11-14
Detail Information


    TICOPTFE, China military designated suppliers, focus on manufacturing and supplying various of PTFE parts and products 11 years .


Basic Information

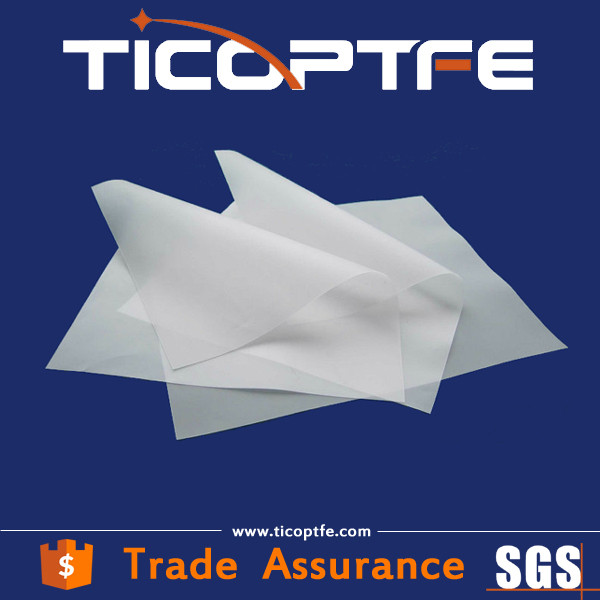

PTFE film8


     PTFE resin is first moulded into work blank and then skived.The PTFE resin skived sheet&tape are dielectric chemical resistant and not aging.They have a wide range of operation temperature.


Property

Unit

High-density

Semi-density

Common

Tensile Strength

MPa

≥30

≥20

≥10

Elongation At Rupture

%

≥30

≥60

≥100

1MHZ dielectric loss tengent≥0.01



2.5*10-4

-

-

1MHZ Dielectric Constant



AVG 1.8-2.2

-

-

Dc Breakdown Voltage
(normal temperature)

KV/M

AVG 200
MIN 40

AVG 60
MIN 60

AVG 30




Specification

Item

Thickness

Thickness Allowance

Width

Width Allowance

Lengh(cm)

High-density

0.015  0.030
0.020  0.035
0.025  0.040

±10%

30-90

±0.3

≥50

Semi-density

0.030
0.035
0.05-0.10

±10%

60-90

±0.3

≥100

Common

0.020  0.025
0.030  0.035
0.040-0.10

±10%

60-90

±2.0

≥50


Application




Application



Why%20Us

Business advantage

1. Focus on production and supply of PTFE components and products

2. 11 years experience in PTFE production and processing

3. 26 years of technical experience precipitation

4. 6 years experience of export services

5. Military designated suppliers

6. Service experience in many industries and areas

7. Long-term stable cooperation with customers in 27 countries


Quality products:

1. Competitive factory price

2. 100% Virgin material to ensure quality

3. Free samples available

4. SGS Standard Certification

5. CNC Custom processing

6. Safe package suit for Air shipment and sea shipment





Professional service:

1. 6 yeas experience of export services

2. Service for 45 countries and more than 1500 clients

3. Flexible MOQ

4. Delivery on time

5. 7*24 hours quick response

6. Promise change the product In case of quality problems
